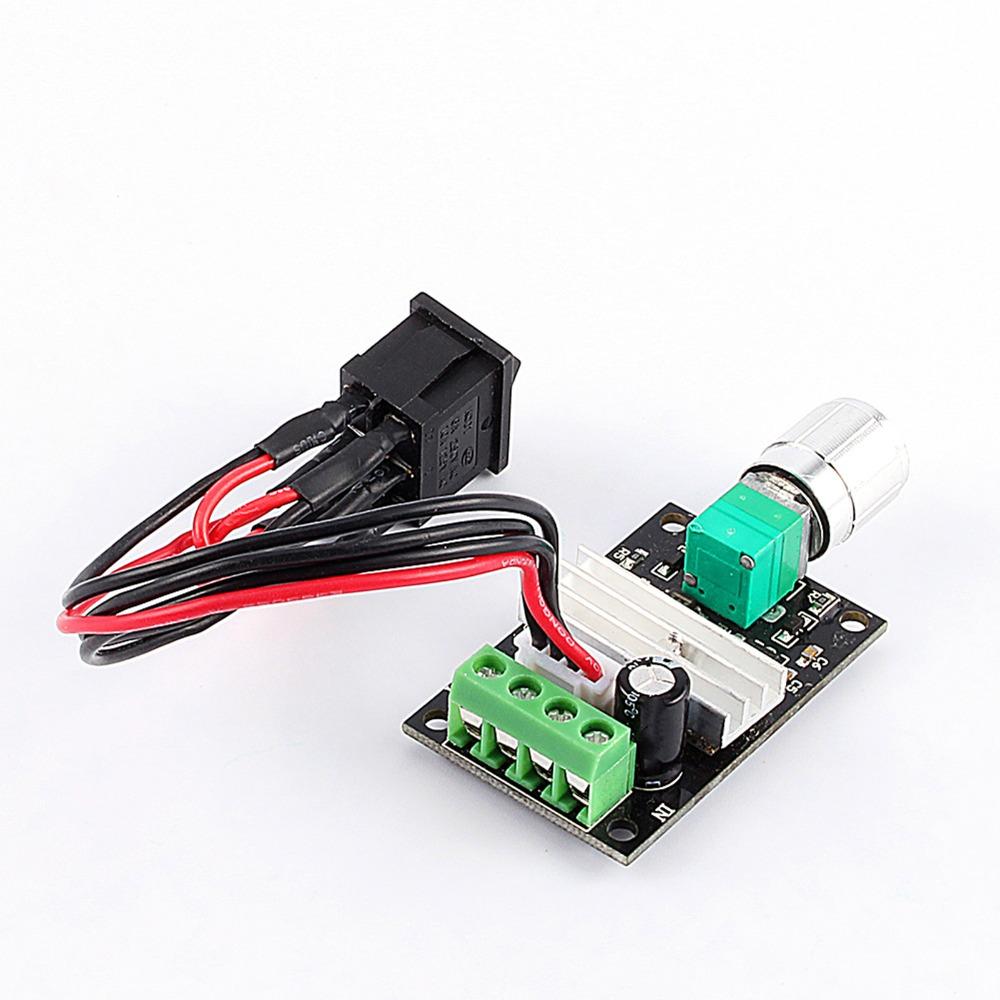

80W Power Capacity PWM Motor Controller 6‑28V Input Voltage DC Motor Driver Industrial Automation

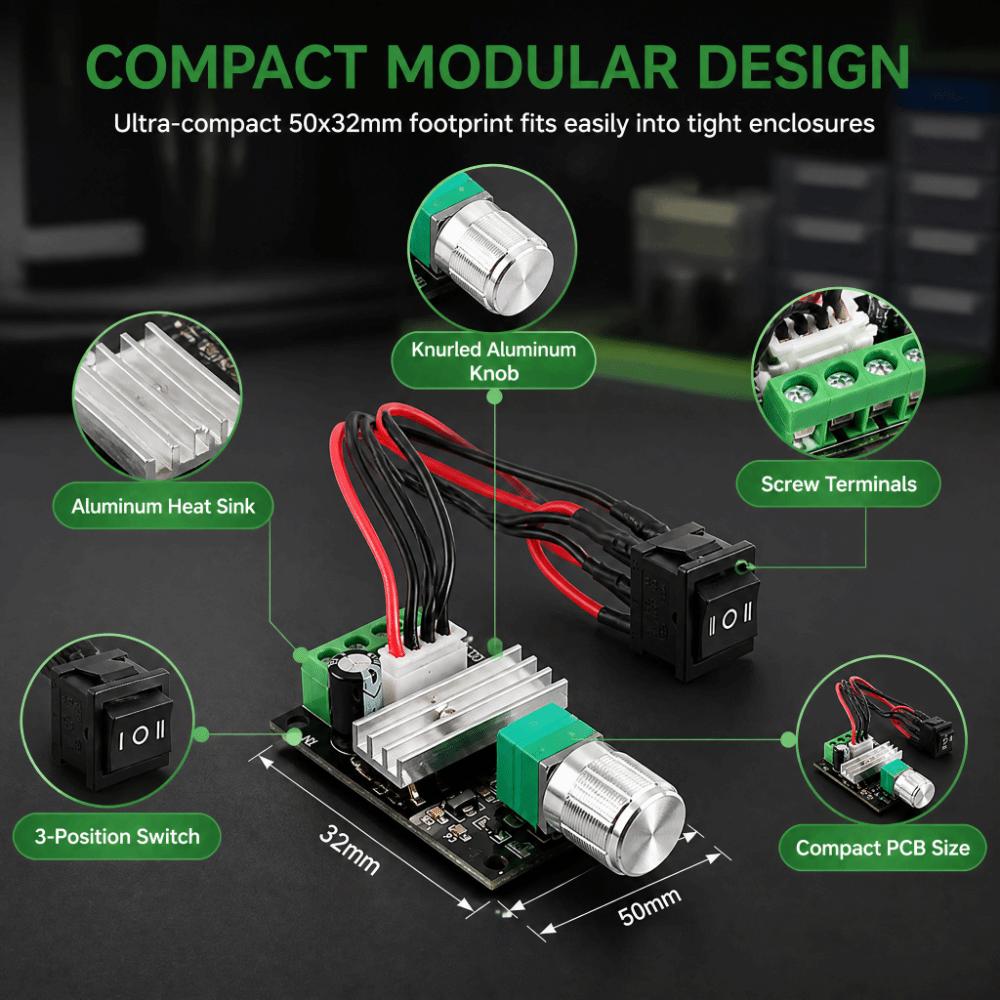

Label:Yes [Adjustable Duty Cycle] The duty cycle adjustable range is 5% to 100%, allowing flexible speed control for different working needs. [Forward, Reverse, and Stop Control] A switch controls the forward or reverse direction and stop of the DC motor. The potentiometer includes a switch function for convenient handling. [Compact Size and Cable Length] The switch cable length is 15 cm / 5.91 in. Item size is 50 x 32 x 15mm(1.97 x 1.26 x 0.59in), making it easy to install in tight spaces.

[PWM Speed Control] This DC motor speed regulator controls motor speed by adjusting pulse width modulation (PWM), providing smooth and reliable speed regulation. [Wide Input Voltage Range] The input voltage range is DC 6 to 28 V, suitable for a variety of low voltage DC motor applications.

Specifications: Condition:Factory New Input Voltage: DC 6V - 28V (Strictly DC power only) Max Continuous Current: 3A (Not suitable for high-draw 775 motors) Max Output Power: 80W Control Method: Pulse-Width Modulation (PWM) Directional Control: 3-Position Toggle Switch (Forward / Stop / Reverse) Wiring Material: Ultra-soft, high-temperature silicone wire Color: Multicolor Material: PCB Size: Approx. 50 x 32 x 15mm(1.97 x 1.26 x 0.59in)

Operating instruction: Before you attempting to wire the controller, make sure power is off. WARNING: DO NOT REVERSE POSITIVE AND NEGATIVE POWER LOADS. THIS WILL DAMAGE THE CONTROLLER 1. Connect wires refer to the "wiring diagram" (NO.4 picture) 2. Turn on the power, and adjust the potentiometer 3. The LED indicates the power up and the speed of motor

Package Includes: 1 x DC Motor Speed Controller
